特點:
該機型對極厚料加固縫紉提供理想縫紉效果,該機采用凸輪挑線、擺梭勾線,電腦編程控制,對中厚的材料、較粗的縫線、復雜的圖形,都可縫制出高品質的縫跡,具有縫紉結束后,熱切底面線功能。
Characteristics:

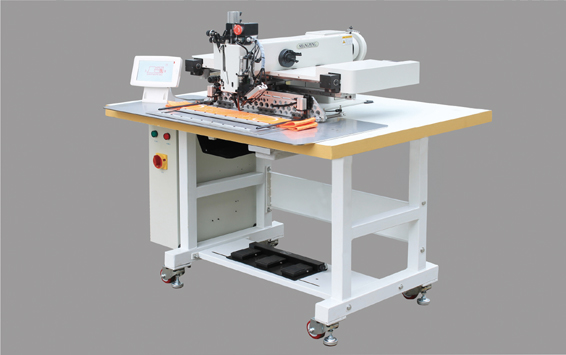

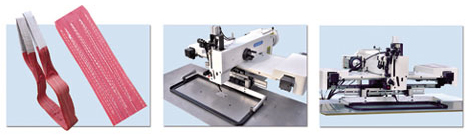

This machine is special design for obtaining reinforcing seam on extremely heavy duty materials by using very thick thread. It adopts Thread take-up cames and large shuttle hook, which are good for sweing super heavy material. The large sewing area allows it to be a versatile electronic pattem industrial sewing machine for use in many different sections of the clothing and textile industry.
主要技術參數Main Parameters:
用途 USE |
極厚料 |
縫紉范圍 Sewing range |
3、500mm×200mm |
縫紉速度 Sewing speed |
800 r.p.m(針距5mm以內)大針距縫紉速度相應降低 |
針距 Needle distance |
1-12mm |
針桿行程 Needie bar stroke |
56mm |
外壓腳提升 Heigth of preess foot |
22mm |
機針型號 Type of needie |
DY×3 |
擺梭 Swinging shuttle |
KSP-204N |
