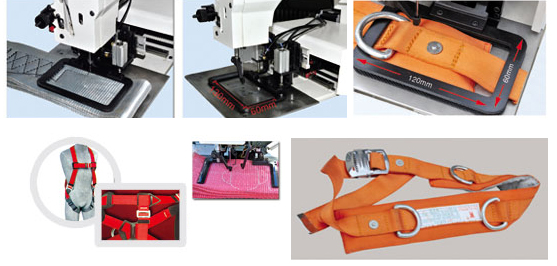

特點:
本系列機型對厚料加固縫提供理想縫紉效果,無需熟練技術也能完成縫紉要求,厚料機采用大擺梭梭芯,電腦編程控制,保證高產量和卓越的花樣縫式質量,粗線縫紉時也無需頻繁更換梭芯,進而能提高生產效率。
Characteristics:
This series of models of thick seam reinforcement materials to provide the best sewing results, can be completed without the need of skilled sewing requirements, thick material machine is put on a large Haloxylon core, computer programming control, to ensure high yields and excellent pattern slotted quality, thick line, also do not need frequent replacement sewing bobbin, thus can improve production efficiency.
主要技術參數Main Parameters:
縫紉范圍 Sewing range |
130mm×60mm |
縫紉速度 Sewing speed |
800 r.p.m(針距5mm以內)大針距縫紉速度相應降低 |
針距 Needle distance |
1-12mm |
針桿行程 Needie bar stroke |
56mm |
外壓腳提升 Heigth of preess foot |
22mm |
機針型號 Type of needie |
DY×3 |
擺梭 Swinging shuttle |
KSP-204N |
