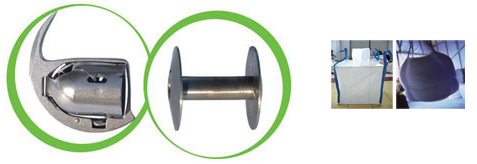

特點:DS9800 集裝袋專用縫紉機采用加大擺梭,梭芯線量大,縫制效率高;采用上下復合送料方式,送料力量強勁穩定;超大容量的梭芯使縫紉循環周期增長,減少更換梭心次數。
Characteristics:DS9800 specialized container bag sewing machine with large shuttle hook,double bobbin thread capaciy,with top and bottom feed,and strong and reliable feeding system,jumbo bobbin make the sewing with longer time and reduce the bobbin thread changing time and raised up efficiency.
使用范圍:該產品是主要用于集裝袋、沙發、制鞋、安全帶、皮革、牛仔服、帳篷等粗線厚料制作。
Application: Suitable for sewing of shoes,sofa,packing bags,safety belt and rents.
主要技術參數Main Parameters:
縫速高達 Max.Sewing speed |
800-1000針/分鐘 800-1000/min |
壓腳提升高度 Stitch length |
14mm |
針距大 Needle bar stroke |
0-14mm |
壓腳提升高度 Presser food lift |
14mm |
機針型號 Needle size |
7×230/250/300 |
電機 Motor |
550W1400轉/分 500w1400/min |
用途 Application |
集裝袋專用 Bag special sewing machine |
